Mastering dress pattern drafting is one of the most empowering milestones for any sewist or fashion designer. Off-the-rack commercial sewing patterns often require frustrating alterations across the bust, shoulders, and waist. By building a personalized basic dress block from scratch, you create an accurate blueprint tailored exactly to your unique proportions.
In this comprehensive guide, we translate expert pattern-making principles into simple, repeatable steps. Whether you want a full-length shift dress sloper or a fitted waist bodice pattern, this tutorial covers every critical measurement, calculation, dart placement, and truing technique you need to achieve a flawless silhouette.

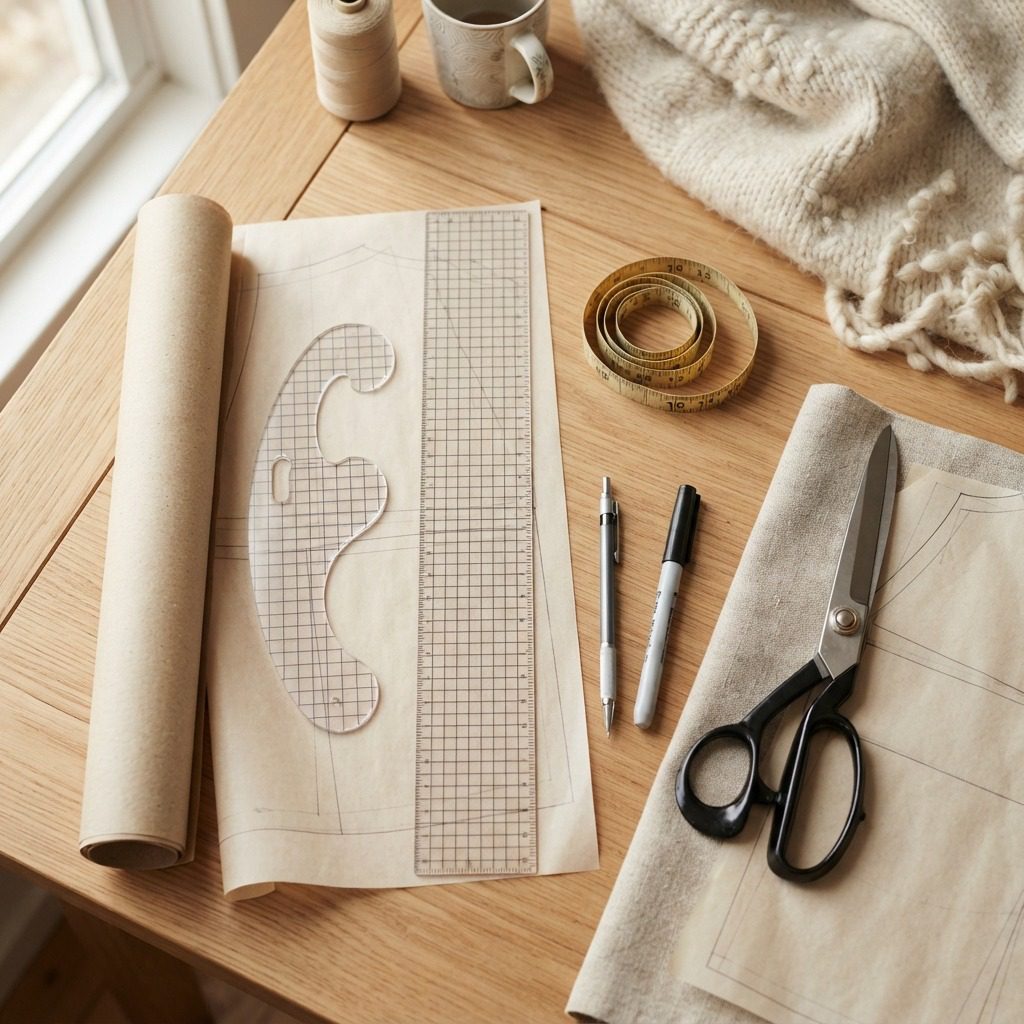

Essential Tools & Materials for Dress Pattern Drafting
Before you start marking lines, gather the proper pattern-making supplies. Having the right drafting equipment ensures crisp lines and clean, repeatable measurements.
- Heavy Kraft or Pattern Paper: Brown kraft paper rolls or white dotted tracing paper give your sloper longevity and durability.
- Clear Metric Ruler (50–60 cm): A transparent acrylic ruler makes drawing parallel guidelines straightforward.
- French Curve / Styling Curve Ruler: Crucial for shaping organic body lines like armholes, necklines, and side hips.
- Flexible Measuring Tape: Essential for taking body measurements accurately without stretching.
- Fine Point Marker or Mechanical Pencil: For crisp reference lines and clear dart legs.
- Paper Cutting Shears: Keep your fabric scissors safe by using dedicated paper shears.
- Pattern Weights: Smooth stones or metal weights to hold your pattern flat while tracing and cutting.
Step 1: Taking Accurate Body Measurements
Precise body measurements are the absolute foundation of successful pattern drafting. When measuring yourself, wear the undergarments you typically wear under fitted garments and stand naturally upright in front of a full-length mirror.
+--------------------------------------------------------------------------+
| ESSENTIAL MEASUREMENTS LOG |
+----+--------------------------+------------------------------------------+
| 1. | Neck Circumference | Measured around the base of the neck |
| 2. | Shoulder Width | Tip of left shoulder to right shoulder |
| 3. | Bust Span | Distance between apexes (nipple to nipple|
| 4. | Bust Level & Circumf. | Shoulder point to apex / around fullest |
| 5.
| Waist Level & Circumf. | Shoulder point to narrowest waist point |
| 6. | Hip Level & Circumf. | Shoulder point to fullest seat area |
| 7. | Total Garment Length | Shoulder point to desired hem level |
How to Measure Accurately
1. Neck Circumference: Wrap the tape measure around the lower base of your neck where a crew neckline naturally rests, not higher up your throat.
2. Shoulder Width: Measure across the back from the bony tip of one shoulder blade across to the opposite shoulder tip, curving gently across the base of the neck.
3. Bust Span: Measure horizontally across the bust line between the two bust apex points.
4. Vertical Drop Levels: Anchor the tape at the high shoulder point (where the shoulder meets the neck base) and let it hang straight down. Record the vertical distances to the bust apex, the narrowest natural waistline, the widest hip line, and your desired hemline.
5. Horizontal Circumferences: Measure snugly but comfortably around the fullest bust, natural waist, and fullest hip points.
Step 2: Drafting the Front Block Guidelines
Because garment patterns are symmetrical, we draft half of the front body (one-quarter of the full circumference) along the straight edge of your pattern paper.

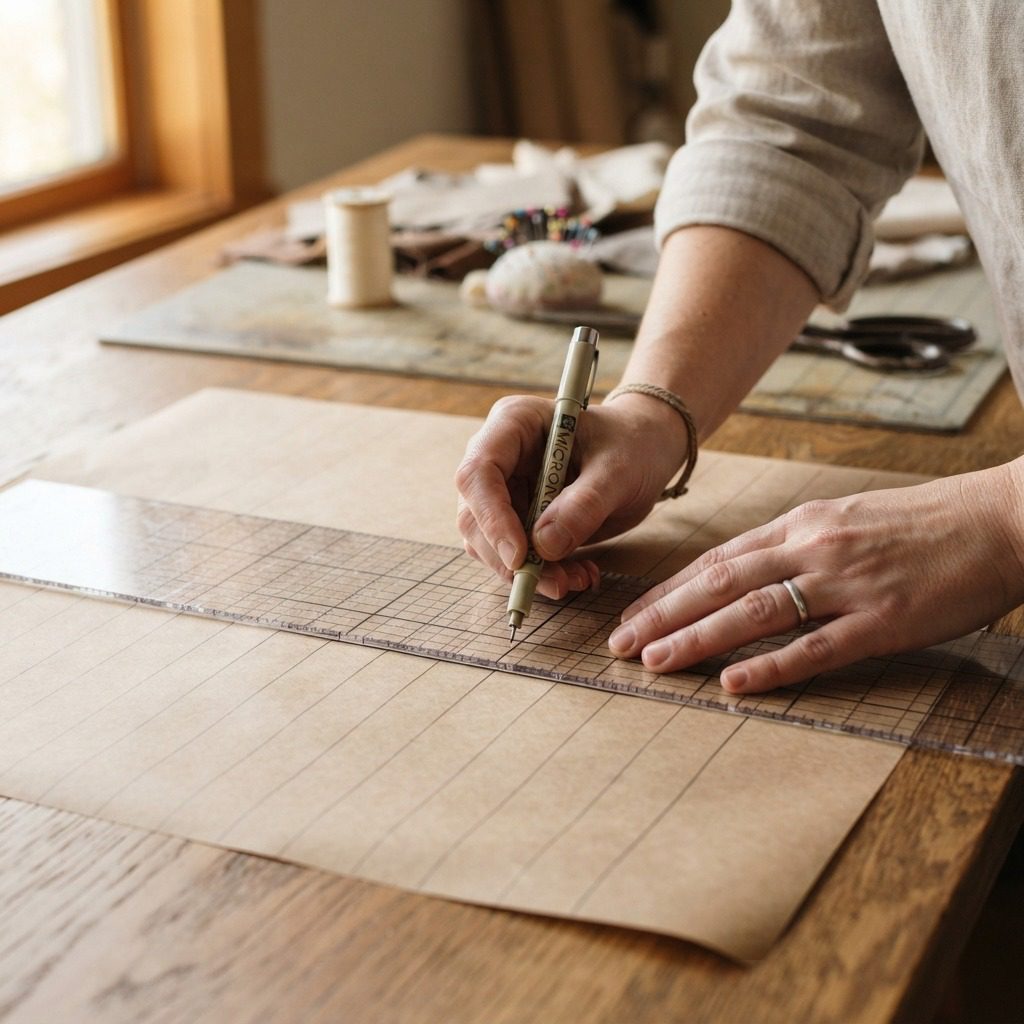

Marking the Vertical Levels
Anchor the start of your measuring tape at the top-left edge of your paper. Draw horizontal reference lines perpendicular to the paper edge at the following drop measurements:
- Line 1 (Neck Depth): $\text{Neck Circumference} \div 5$
- Line 2 (Armhole Depth Line): $(\text{Armhole Circumference} \div 2) + 1\text{ cm}$
- Line 3 (Bust Level Line): Your measured vertical high-shoulder-to-bust-apex drop.
- Line 4 (Waist Level Line): Your measured vertical high-shoulder-to-waist drop.
- Line 5 (Hip Level Line): Your measured vertical high-shoulder-to-hip drop.
- Line 6 (Hem Line): Your total desired dress length (e.g., 80 cm).
Setting the Horizontal Widths & Wearing Ease
Garments require a small amount of movement allowance (wearing ease) so you can breathe and move comfortably.
- Bust Width: $(\text{Bust Circumference} \div 4) + 1.5\text{ cm}$
- Armhole Depth Width: Equal to your calculated Front Bust Width.
- Waist Width: $(\text{Waist Circumference} \div 4) + 3\text{ cm (waist dart allowance)} + 0.5\text{ cm (optional ease)}$
- Hip Width: $(\text{Hip Circumference} \div 4) + 0.5\text{ cm}$
Connect the bust, waist, hip, and hem marks with a smooth, continuous line. Use a curved ruler between the waist and hip to mirror the body’s natural curvature.
Step 3: Front Neckline, Shoulder Slope & Armhole Curve
Pattern Paper Top Edge
+===========================================+
|\ Neck Width (Neck / 5) |
| \ |
| *-------- Shoulder Length (Width / 2) |
| | \ |
| | Neck Depth * (Drop 3.5 cm) |
| | \ |
| * \ Armhole Curve |
| \_ _ _ |
| * Armhole Line
1. Front Neckline Box
Mark your Neck Width horizontally along the top edge: $\text{Neck Circumference} \div 5$. Connect this point to the Neck Depth mark on Line 1 to create a square box. Draw a diagonal guideline from the corner, divide it into thirds, and sketch a clean scooped neckline passing through the outer third.
2. Shoulder Slope
From the neck-shoulder corner, measure out horizontally by half of your shoulder width $(\text{Shoulder Width} \div 2)$. Drop this point downward vertically by 3.5 cm to account for natural shoulder slope. Draw the straight shoulder seam line from the neck point to the dropped shoulder tip.
3. Front Armhole Curve
From the shoulder tip, drop a vertical guideline straight down to Line 2 (armhole depth line). Step inward horizontally along Line 2 by 3 cm. Connect the shoulder point to this new point with a slanted guideline. Find the center of this line, connect it diagonally into the corner, divide into thirds, and sketch a deeply scooped armhole curve.
Step 4: Adding Front Darts (Turning 2D Paper into 3D Fit)
Fabric is flat, but the human body is three-dimensional. Darts fold away excess flat fabric to shape the garment smoothly around curved contours like the bust and hips.
Bust Apex (*)
/ | \
/ | \
/ | \ <-- Bust Dart (Side)
/ | \
/ | \
/ Waist Line \
/ | \
/ Waist Dart \
*----------*----------*
1.5 cm | 1.5 cm
|
v (Extends 17 cm down)
1. Front Waist Dart
- Locate your bust apex on Line 3: Measure inward from the center front edge by half your bust span $(\text{Bust Span} \div 2)$.
- Draw a vertical guideline straight down from the apex through the waistline, extending 17 cm down into the skirt.
- On the waistline, mark 1.5 cm on both the left and right sides of your centerline (total 3 cm dart intake).
- Connect the apex and lower dart tip to both waist marks to form a diamond-shaped waist dart.
2. Side Bust Dart
- On the side seam, locate the center of your bust dart approximately 10 cm up from the waistline.
- Draw a reference line from this side seam point directly to the bust apex point.
- Mark your dart width (3 cm total: 1.5 cm above and 1.5 cm below the center guideline).
- Draw the lower dart leg. Measure its exact length, and make sure the upper dart leg matches this exact length.
Important Cutting Tip: When cutting out the front pattern piece, fold the lower bust dart leg up over the upper dart leg before cutting through the side seam paper. This creates the correct dart jog / paper extension so your side seams match perfectly when sewn!

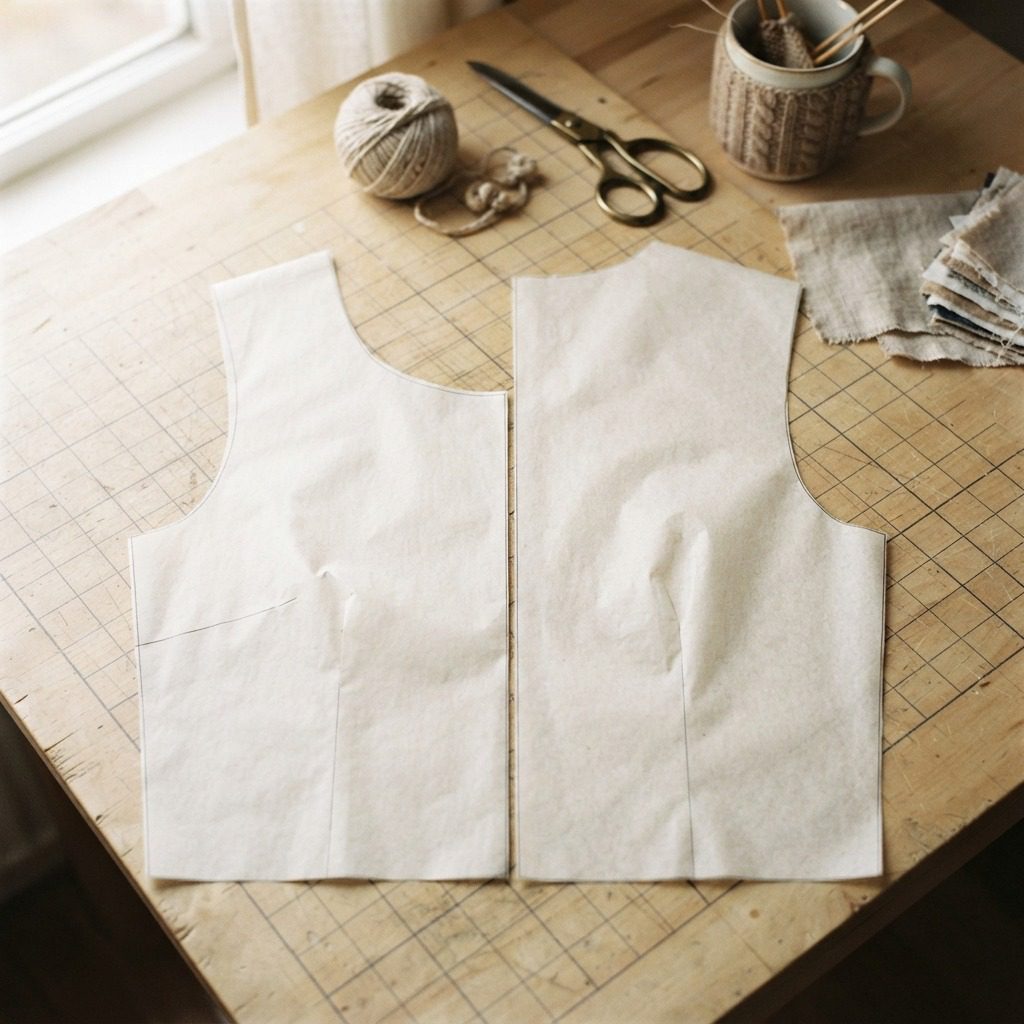

Step 5: Drafting the Back Pattern & Shoulder Rise
Drafting the back bodice is significantly faster because you can use your completed front block as a master template.
Transferring the Master Guidelines
- Lay your cut-out front pattern on top of a fresh sheet of pattern paper, aligning the straight center edges.
- Mark the exact positions of the Armhole Line, Bust Line, Waist Line, Hip Line, and Hem Line.
- Trace the skirt side seam from the hem up to the lower bust dart level.
- Fold the front bust dart closed on your master piece, and transfer the side seam armhole connection point.
Back Side Seam Adjustment
Because the human back does not have bust projection, the back pattern requires less width at the bust line. Measure inward by 1 cm at the back bust line and draw a tapered back side seam down to the waist.
+-------------------------------------------------------------------------+
| THE PURPOSE OF SHOULDER RISE |
+-------------------------------------------------------------------------+
| • Human backs have a natural spinal curve and shoulder blade roundness. |
| • If front and back shoulder heights are identical, garments pull back. |
| • Raising the back shoulder seam by 2 cm balances garment balance lines.|
+-------------------------------------------------------------------------+
Drafting the Back Shoulder Rise & Neckline
- Shoulder Rise: Extend the back shoulder slope upward by 2 cm parallel to the front shoulder line, maintaining the exact same shoulder length.
- Back Neckline: From the high shoulder point, drop down just 3 cm along the center back edge. Connect with a gentle shallow curve.
- Back Armhole: Connect the raised shoulder tip down to Line 2, stepping inward by 1.5 cm for a shallower, less scooped curve than the front.
- Back Waist Dart: Find the midpoint between center back and side seam on the armhole line. Step in 1 cm, drop a vertical center guide through the waistline (extending 15–20 cm down). Make the total dart width 2 cm (1 cm on each side).
Step 6: Pattern Truing & Final Quality Checks
Before transferring your pattern onto test fabric (muslin / toile), you must “true” the pattern. Truing means checking that all adjoining seams match in length and meet at smooth, continuous curves.
1. Side Seam Length Verification
Fold the front bust dart closed. Align the front side seam directly against the back side seam from the armpit down to the hem. Both edges must match identically in length. If there is a slight discrepancy, blend and trim the hemline evenly.
2. Shoulder Seam Verification
Place the front and back shoulder seams together at the stitching line. Confirm that the front and back shoulder lengths are identical.
3. Neckline & Armhole Continuity
With the shoulder seams pinned together, look at the transition across the seam lines:
- The neckline should form a smooth, unbroken circular or oval curve without a sharp “V” or peak at the shoulder seam.
- The front and back armholes together should form a continuous, smooth oval. Smooth out any harsh corners using your styling curve ruler.
The Hollow Back Adjustment (For Fitted Garments)
If you have a pronounced inward curve at your lower back (lordosis or a hollow back), standard flat patterns often bubble and bunch with excess fabric at the lumbar region.
Center Back Fold Line
| |
| (Upper Back) |
| \ |
| \ 1 cm | <-- Taper inward 1 cm at waist
| * |
| / |
| / |
| (Hip) |
To eliminate back waist pooling:
- On garments that have a center back zipper seam (two separate back panels), mark 1 cm inward at the center back waistline.
- Taper this adjustment smoothly up to the neck base and down to the hip line.
- Cut away this shallow sliver on your back panels for an immaculate, glove-like fit across your spine.
(Note: Skip this adjustment if you are cutting your back panel on a single fold, such as for a loose T-shirt dress).
For more standard sizing tables and garment construction fundamentals, consult the authoritative pattern guidelines at the Craft Yarn Council and standard dressmaker resources on Wikipedia’s Pattern Drafting Guide.
Troubleshooting Common Dress Block Fitting Issues
- Armhole Feels Constricted: Lower Line 2 (armhole depth line) by 1–1.5 cm or reduce the armhole scoop curve.
- Bust Dart Points Past the Apex: Shorten the bust dart so its point ends 2–2.5 cm back from the true bust apex point. This prevents unsightly cone-shaped points on the fabric.
- Neckline Gaping: Check that your neck depth formula was calculated accurately $(\text{Neck Circumference} \div 5)$ without adding unneeded ease allowances.
Frequently Asked Questions (FAQ)
What is the difference between a sloper and a pattern?
A sloper (or basic block) is a fitted basic template without seam allowances, style lines, pockets, or design details. A pattern is created by modifying a sloper to add design elements (collars, flares, pleats) plus standard seam allowances (usually 1.5 cm or 5/8 inch).
Do these drafted pieces include seam allowances?
No. This drafting tutorial produces a basic zero-ease fitting block. When cutting your final fabric, add your preferred seam allowances around all outer edges (typically 1.5 cm on side seams, 1 cm on necklines and armholes, and 3–4 cm for hem folds).
Can I use this block to make tops and skirts separately?
Yes! To make a standalone bodice or blouse, simply trace the pattern from the shoulder down to the waistline. To make a pencil skirt, trace from the waistline down to the hemline using your calculated waist and hip dart values.
